Chips| Modules

CHIPS


Display Decoder

WiFi to Display chips USB to Display chips

WiFi

USB

Chips

Display

Display Encoder

Display to WiFi chipsets Display to Ethernet chipsets Display to USB chips

Display

Chips

WiFi

Ethernet

USB

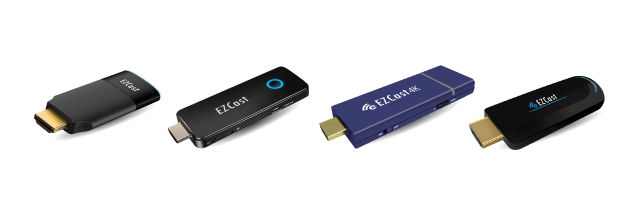

Display Decoder

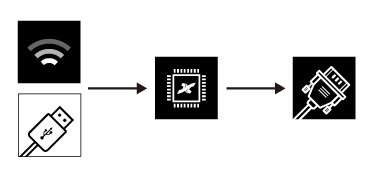

WiFi to Display chips

Receive the compressed displays of the smart devices and convert them to conventional display interfaces through WiFi

AM8268/C

  • 1080/60P Decode/Display
  • WiFi 4
  • EZCast, 5OS
  • LQFP128
◀ 1/5 ▶

AM8269/D

  • 1080/60P Decode/Display
  • WiFi 4/5
  • Embedded 1Gb DDR
  • EZCast, 5OS
  • QFN68
◀ 2/5 ▶

AM8271/2

  • 4K30P Decode/Display
  • WiFi 4/5
  • EZCast, 5OS
  • LQFP144 EPAD
◀ 3/5 ▶

AM8275

  • 4K60P HDR Decode/Display
  • WiFi 5
  • EZCast, 5OS
  • TFBGA324
◀ 4/5 ▶

AM8280

  • 1080/60P Display decoder
  • HDMI/VGA In, DLP/LCD Panel
  • WiFi 4/5
  • EZCast, 5OS
  • TFGBA352
◀ 5/5 ▶

Display Decoder

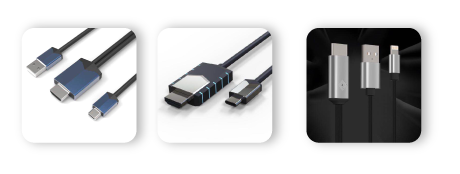

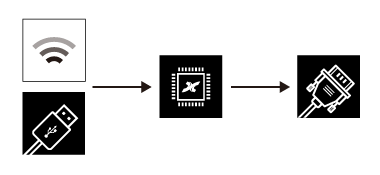

USB to Display chips

Receive the compressed displays of the smart devices and convert them to conventional display interfaces through USB/Lightning

AM8268L/W

  • 1080/60P Decode/Display
  • iOS lightning, Android USB Mirroring
  • LQFP128
◀ 1/2 ▶

AM8268D/N

  • 1080/60P Decode/Display
  • Embedded 1Gb DDR
  • iOS lightning, Android USB Mirroring
  • QFN68
◀ 2/2 ▶

Display Encoder

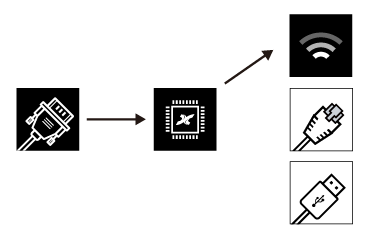

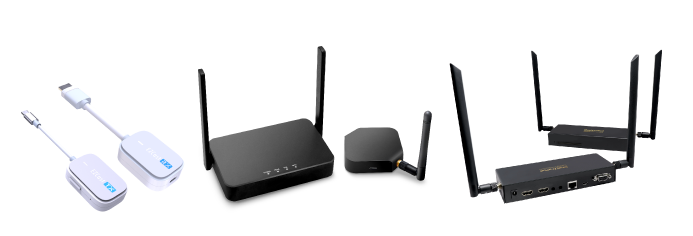

Display to WiFi chipsets

Capture and convert the display and transmit the compressed display through WiFi

AM8360B+AM8268B

  • Compact Display TX protocol
  • 1080 30P, Display loopback
  • WiFi4 5G
  • External DDR
  • 90ms latency
◀ 1/4 ▶

AM8360D+AM8268D

  • Compact Display TX Protocol
  • 1080 60P, Display loopback
  • WiFi5 5G
  • Embedded DDR, Smallest form
  • 60ms-90ms latency
◀ 2/4 ▶

AM8360D+AM8271

  • Compact Display TX Protocol
  • 4K 30P, Display loopback
  • WiFi5 5G
  • Embedded DDR, Smallest form
  • 60ms-90ms latency
◀ 3/4 ▶

AM8270+AM8270

  • ProAV/Quattropod/Protocol
  • Pseudo 4K
  • WiFi5 5G 2x2
  • KVM, UVC, UART, IR over IP
◀ 4/4 ▶

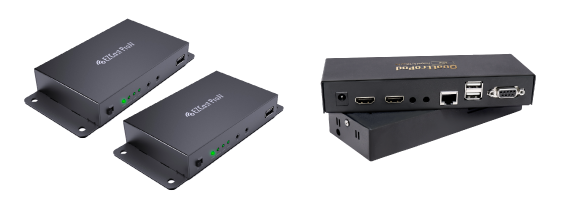

Display Encoder

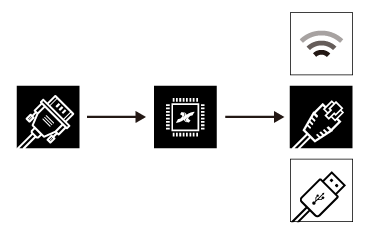

Display to Ethernet chipsets

Capture and convert the display and transmit the compressed display through Ethernet

Features

  • < 0.5ms latency, Fixed latency for 1 to many application
  • All RX have the same latency compared to TX
  • Cascade-able for ulimited stage with the same quality
◀ 1/4 ▶

AM8371+AM8371

  • EZCast Sync Display Protocol
  • 4K In, 4K Display loopback
  • 1 to 1, RJ45/Optical Gb Ethernet
  • Under 1ms latency, LQFP128
◀ 2/4 ▶

AM8370+AM8370

  • EZCast Sync Display Protocol
  • 4K In, 4K Display loopback
  • 1 to 1, 200 meters
  • 1 to many, through L2 Switch
  • Gb Ethernet/Optical
  • Under 1ms latency, LQFP128
◀ 3/4 ▶

AM8375+AM8370

  • EZCast Sync Display Protocol
  • 4K In, 4K Display loopback
  • 1 to many, AM8375+L2 Switch
  • Design with RTL8365(4 port), RTL8370 (8 ports)
  • 1ms latency, LQFP128
◀ 4/4 ▶

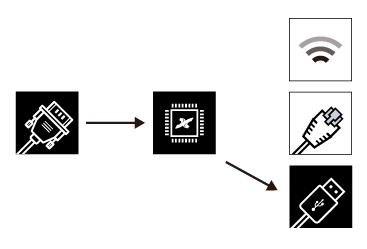

Display Encoder

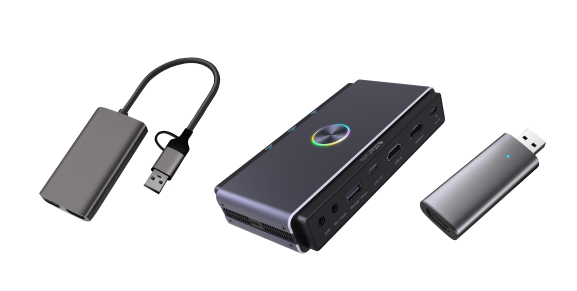

Display to USB chips

Capture and convert the display and transmit the compressed display through USB

AM8352

  • 4K Input, USB2.0
  • 1080 60P MJPEG UVC
  • External DDR2
  • LQFP128
◀ 1/4 ▶

AM8351

  • 4K input & loopback, USB2.0
  • 1080 60P MJPEG UVC
  • External DDR2
  • LQFP128
◀ 2/4 ▶

AM8350

  • 4K Input, USB2.0
  • 4K 30P MJPEG UVC
  • H.264 MP4 for USB storage
  • External DDR3
  • LQFP128
◀ 3/4 ▶

AM8270

  • USB 3.0, 1080P NV12/MJPEG/H.264 UVC Encoder
  • Display loopback
  • RTMP/RTSP streaming (UVC02)
  • USB Disk Recording
  • Mobile devices mirroring (iOS, Android)
  • USB3.0
◀ 4/4 ▶

Modules

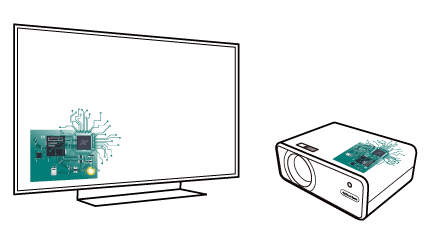

WiFi to Display Modules

WiFi to Display Modules

enquip your display devices, such as TV, monitor, projectors with wireless diplay capability


AM8268C

  • 1080/60P Disply decoder
  • WiFi4
  • USB for iOS/Android mirror
  • Airplay, Miracast, DLNA, Chromecast, EZCast protocols
◀ 1/4 ▶

AM8269D

  • 1080/60P display decoder
  • WiFi5
  • USB for iOS/Android mirror
  • Airplay, Miracast, DLNA, Chromecast, EZCast protocols
◀ 2/4 ▶

AM8271/2

  • 4K30P Display decoder
  • WiFi 5
  • USB for iOS/Android mirror
  • Airplay, Miracast, DLNA, Chromecast, EZCast protocols
  • Remote control (UIBC)
◀ 3/4 ▶

Quattropod SDM

  • 4K30P Display decoder
  • Quattropod Receiver full functions
  • Split screen display
  • WiFi 5, 2x2
  • USB touch remote control
  • Airplay, Miracast, Chromecast, EZCast protocols
  • Incooperated with Quattro transmitter
◀ 4/4 ▶
